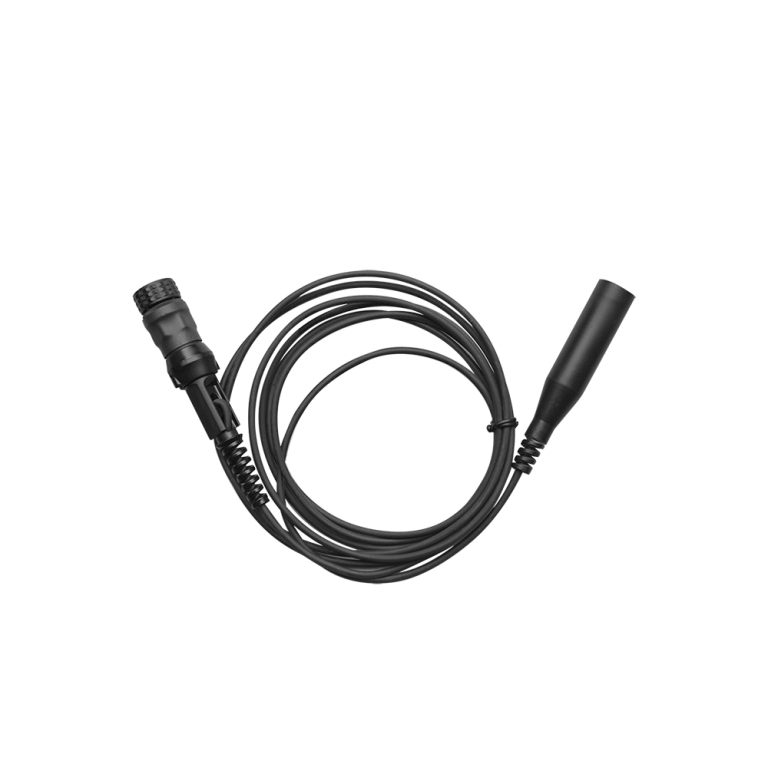

Van Essen Instruments DXT-Cable
SKU AS2001
$199.02
Quick and easy downloading with a Diver deployed on a data cable.
Deploying a Diver on a Diver communication cable saves time on downloading and provides real-time data from your Diver. Connect your laptop equipped with Driver-Office to the DXT-Cable using the USB interface Cable to program and read data from the Diver. Available in lengths from 1 meter to 300 meters.
This DXT-cable can be used for stand-alone applications or to directly connect to the Diver-Link, Diver-MOD, or Diver-SDI. In case of stand-alone use, not connected to any one of these accessories, the Well Top must be used to seal the cable and prevent it from falling into a well with a diameter of 2 inches or less.
Features & Benefits Click here to learn more about the product.
Features
- Program, read data, stop and start from the top of the well.
- Read Diver data using the Diver-Mate.
- User-adjustable standard lengths.
- Custom lengths.
- One eye technology.
Benefits
- No redeploying and displacement of the Diver after reading data.
- Fit the cable to your needs.
- Easy installation.
- Easily screws on the Diver, no alignment necessary.
Applications Click here to view product applications.
- Long term water level monitoring
- Groundwater monitoring networks
- Engineering and construction: Pump tests
- Aquifer characterization: Pump and slug tests
- Pollution monitoring: Landfill leachate monitoring
Key Specifications Click here to view product specifications.
Cable
| Jacket | Black UV resistant FR Polyurethane |
| Diameter (OD) | 3.2 mm ± 0.3 mm |
| Strength | 300 meter of cable mass + 5 kg for 1 week 7 kg load for 15 seconds |
Top Connector
| Housing material | PA, ABS |
| O-rings | NBR |
Bottom Connector
| Housing material | Nylon (Polyamide 6) |
| O-rings | FKM |
| Optical port | Polycarbonate |
Length Accuracy
| Standard length | ±0.5% of cable length |
| Custom length | ±1% of cable length |
| Measured | ±0.2% of specified cable length |
Enviromental
| Value | Unit | |
|---|---|---|
| Temperature range | -20 .. +80 | °C |
Communication
Compatible Diver models:
- TD-Diver (DI8xx)
- Baro-Diver (DI800)
- Micro-Diver (DI6xx)
- Cera-Diver (DI7xx)
- CTD-Diver (DI27x)
- Mini-Diver (DI5xx)
- Baro-Diver (DI500)
